Morphological and Molecular Characterization of Labrys filiformis n. sp. (Rhabditida: Tylenchidae) from Iran Cover

Morphological and Molecular Characterization of Labrys filiformis n. sp. (Rhabditida: Tylenchidae) from Iran

Journal of Nematology
Volume 50 (2018): Issue 3 (January 2018)
By: Yousef Panahandeh,  Joaquín Abolafia,  Ebrahim Pourjam,  Robin M. Giblin-Davis,  Farahnaz Jahanshahi Afshar and  Majid Pedram
Open Access
|Oct 2018

Figures & Tables

Fig. 1

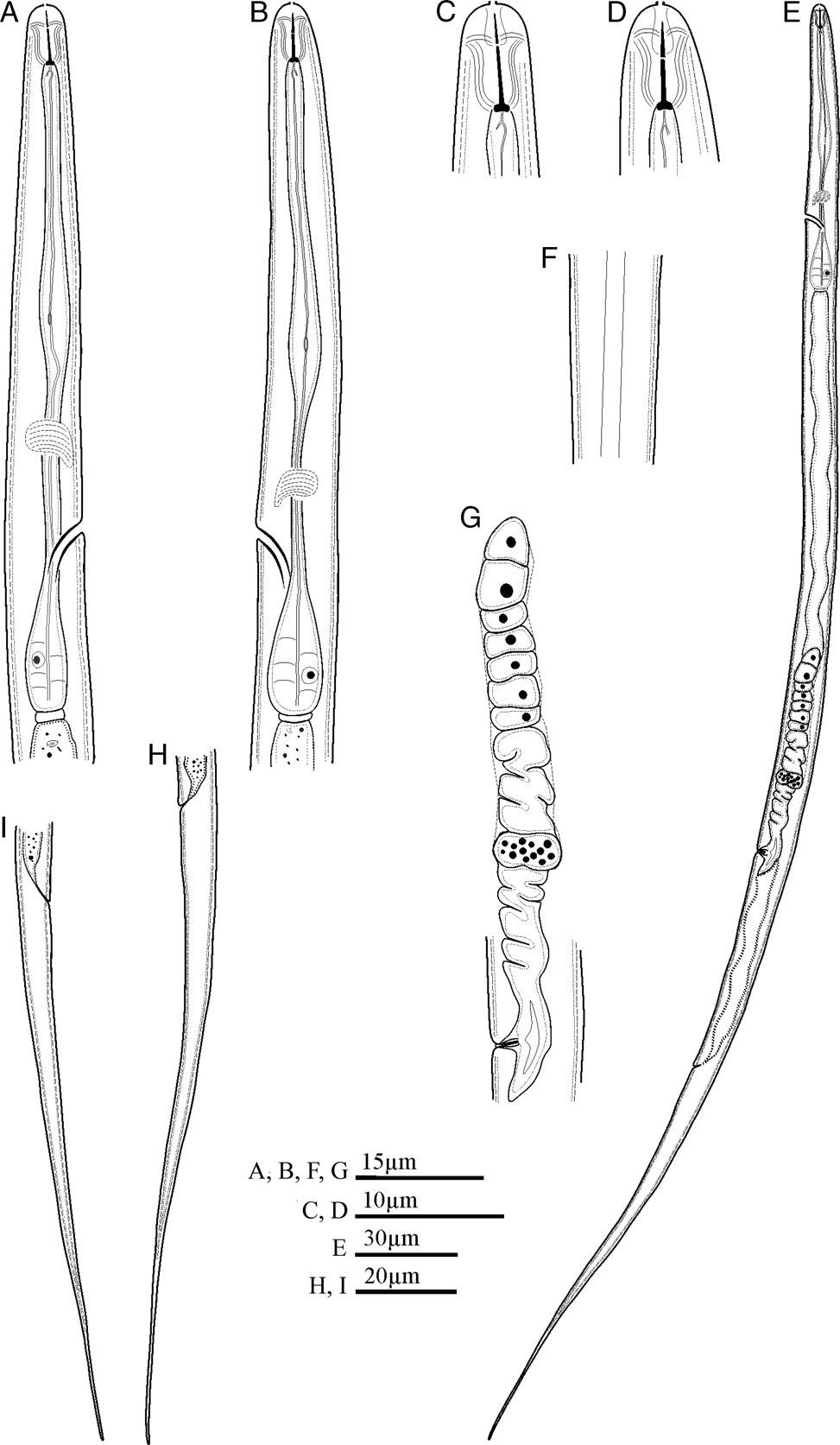

Labrys filiformis n. sp. (female). A, B: Neck (stoma ; pharynx) C, D: Anterior end E: Entire body; F: Lateral field at mid-body; G: Reproductive system; H, I: Tail.
Labrys filiformis n. sp. (female). A, B: Neck (stoma ; pharynx) C, D: Anterior end E: Entire body; F: Lateral field at mid-body; G: Reproductive system; H, I: Tail.

Fig. 2

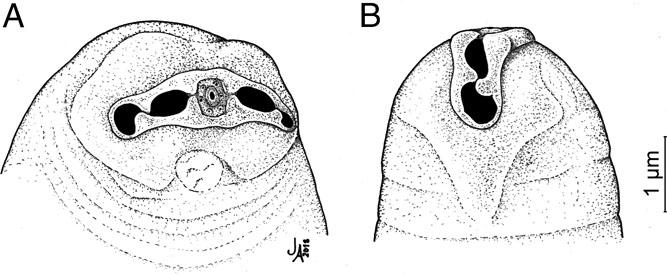

Interpretative drawing of lip region of Labrys filiformis n. sp. based on scanning electron microscopy (SEM) observations in frontal (A) and lateral (B) view.
Interpretative drawing of lip region of Labrys filiformis n. sp. based on scanning electron microscopy (SEM) observations in frontal (A) and lateral (B) view.

Fig. 3

Labrys filiformis n. sp. (light microscopy, female). A, B: Pharyngeal region; C: Anterior end; D: Amphidial aperture E: Spermatheca filled with sperm; F: Lateral field at mid-body; G: Reproductive system; H: Tail tip. All scale bars =10 µm.
Labrys filiformis n. sp. (light microscopy, female). A, B: Pharyngeal region; C: Anterior end; D: Amphidial aperture E: Spermatheca filled with sperm; F: Lateral field at mid-body; G: Reproductive system; H: Tail tip. All scale bars =10 µm.

Fig. 4

Labrys filiformis n. sp. (scanning electron microscopy [SEM], female). A: Anterior region (arrow at the excretory pore); B–E: Lip region in right lateral, subdorsal, sublateral and frontal views, respectively; F: Posterior region (white arrow at the vulva, black arrow at the anus); G, H: Vulva in lateral and subventral views, respectively; I: Excretory pore (arrow); J: Anus.
Labrys filiformis n. sp. (scanning electron microscopy [SEM], female). A: Anterior region (arrow at the excretory pore); B–E: Lip region in right lateral, subdorsal, sublateral and frontal views, respectively; F: Posterior region (white arrow at the vulva, black arrow at the anus); G, H: Vulva in lateral and subventral views, respectively; I: Excretory pore (arrow); J: Anus.

Fig. 5

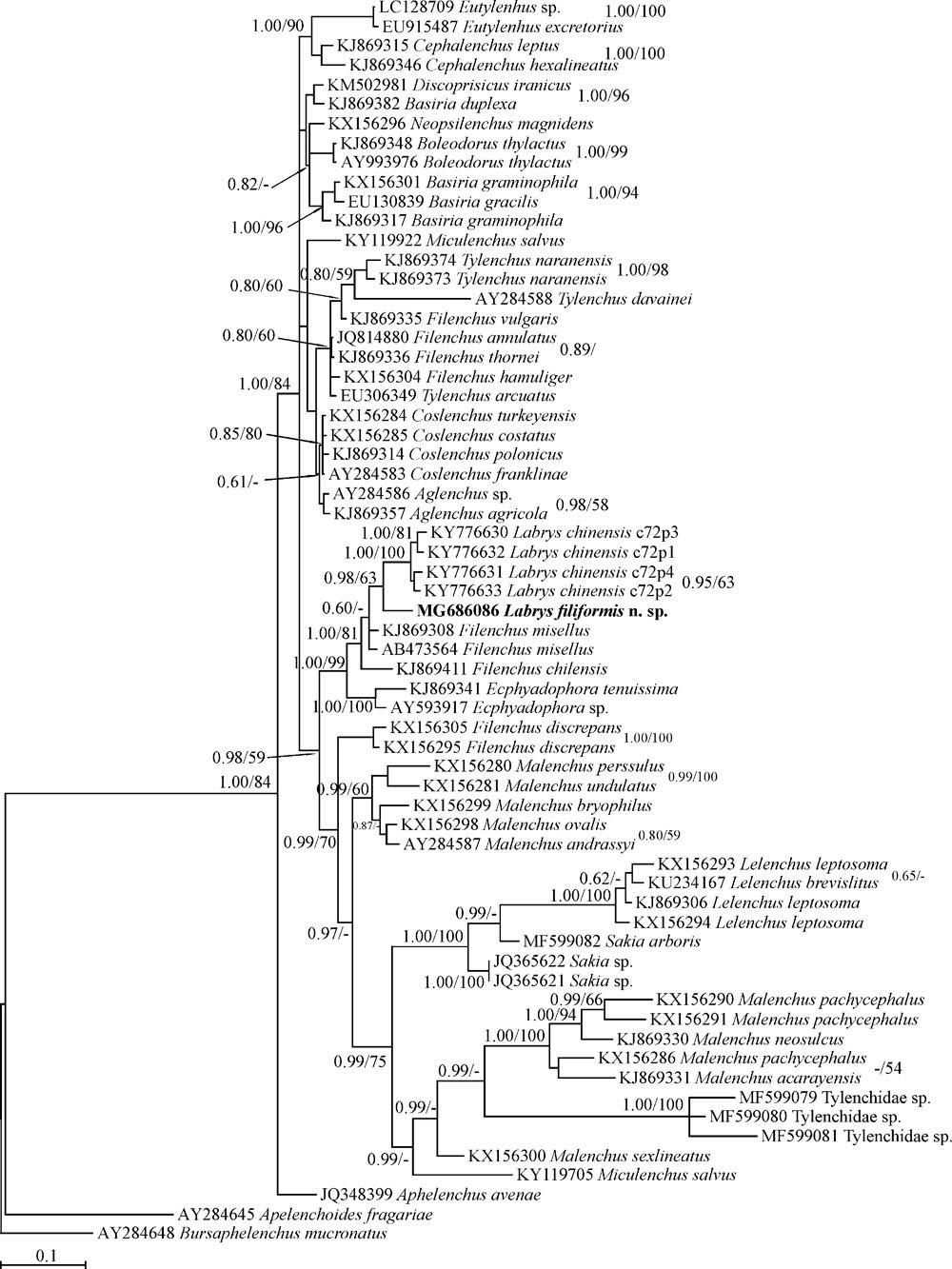

Bayesian 50% majority rule consensus tree inferred from 64 sequences of 18S rDNA (GenBank accession number and species name) under the GTR+G+I model. Bayesian posterior probabilities and maximum likelihood bootstrap values are given for appropriate clades in the form of BPP/ML BS. The new species is in bold.
Bayesian 50% majority rule consensus tree inferred from 64 sequences of 18S rDNA (GenBank accession number and species name) under the GTR+G+I model. Bayesian posterior probabilities and maximum likelihood bootstrap values are given for appropriate clades in the form of BPP/ML BS. The new species is in bold.

Fig. 6

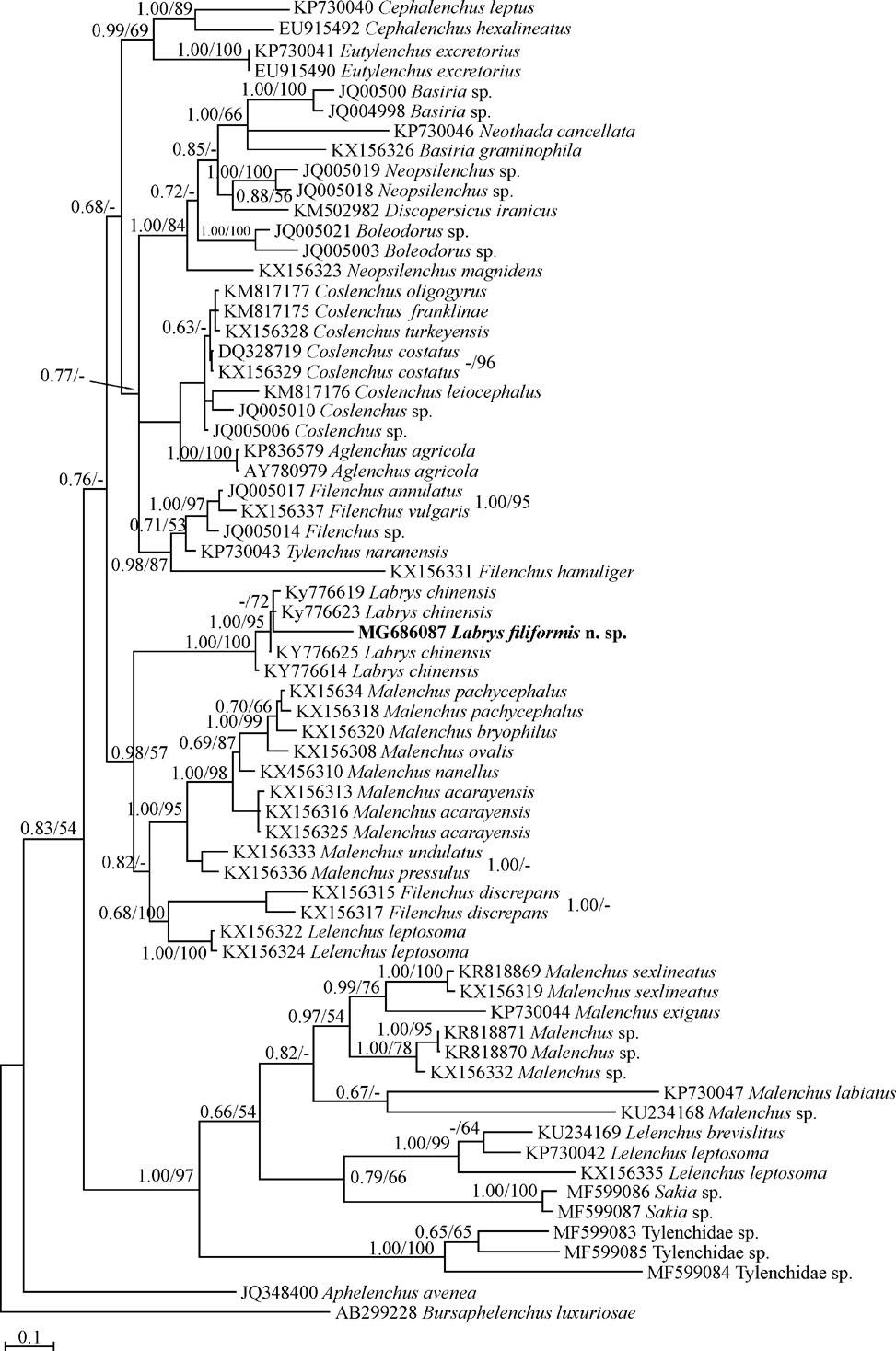

Bayesian 50% majority rule consensus tree inferred from 66 sequences of 28S rDNA D2-D3 (GenBank accession number and species name) under the GTR+G+I model. Bayesian posterior probabilities and maximum likelihood bootstrap values are given for appropriate clades in the form of BPP/ML BS. The new species is in bold.
Bayesian 50% majority rule consensus tree inferred from 66 sequences of 28S rDNA D2-D3 (GenBank accession number and species name) under the GTR+G+I model. Bayesian posterior probabilities and maximum likelihood bootstrap values are given for appropriate clades in the form of BPP/ML BS. The new species is in bold.

Morphometrics of Labrys filiformis n_ sp_ All measurements are in µm and in the form: mean ± standard deviation (range)_

CharacterHolotypeParatype
nfemale8 females
L427440 ±17 (425-463)
a38.841.6 ± 2.3 (38.7-46.2)
b4.95.1 ± 0.2 (4.9-5.4)
c3.93.8 ± 0.2 (3.5-4.0)
c'13.814.6 ± 1.1 (13.2-15.9)
V60.459.9 ± 1.21 (57.7-61.5)
V'81.481.5 ± 1.3 (79.9-84.1)
Stylet length66.2 ± 0.4 (6-7)
Median bulb valve – anterior end4443.7 ± 1.8 (40-46)
Excretory pore – anterior end6965.5 ± 2.6 (62-69)
Neck length (stoma + pharynx)8786.1 ± 2.3 (82-90)
Lip region to vulva258263 ± 8 (256-277)
Body width1110.6 ± 8.3 (10-11)
Anal body width88.0 ± 0.5 (7-9)
Anterior genital branch length6362.5 ± 5.7 (56-72)
Postvulval uterine sac66.4 ± 1.1 (5-8)
Vulva – anterior end258263 ± 8 (256-277)
Vulva to anus distance5960.1 ± 5.2 (49-66)
Tail length110116.6 ± 8.6 (106-127)
